Additional information

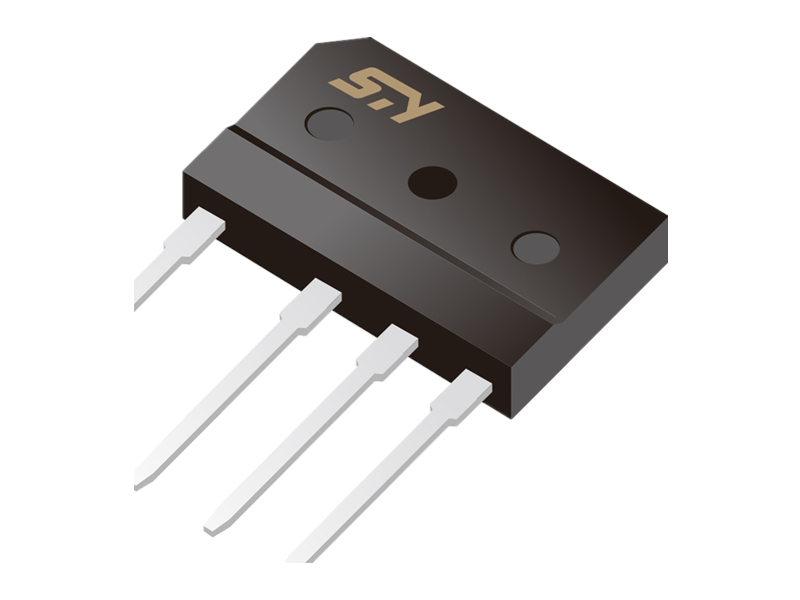

| PACKAGE | GBJ |
|---|---|
| VRRM (V) | 200 |
| Io_Max(A) | 25 |
| IFSM_Max(A) | 350 |
| IF(A) | 12.5 |
| VF_Max(V) | 1.10 |
| IR _Max@25℃(μA) | 5 |
| HTIR _Max(μA) | 300 |
| TEMP. @HTIR(℃) | 125 |
| Trr_Max(ns) | / |
| Tj(℃) | -55~150 |
Anhui Juxin Semiconductor Technology Co., Ltd. is committed to the research and development, as well as manufacturing, of highly reliable and enhanced axial diodes, energy-saving surface mount bridge rectifiers, and new ultra strong surge performance devices and chips.
